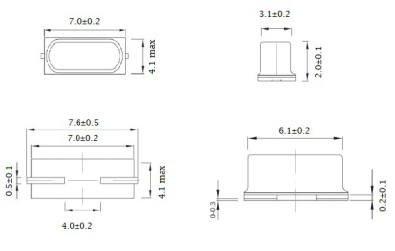

Item |
Standard specifications |
Frequency Range F0 |
3.5 to 66.000MHz |
Load Capacitance CL |
10pF to Series |
Frequency Tolerance △F/ F0 |
±10ppm, ±30ppm,±50ppm(At 25℃) |
Equivalent Series Resistance ESR |
See Table1 |
Temperature Stability TC |
±10ppm,±30ppm,±50ppm(Refer to 25℃) |
Operating Temperature Range TOPR |
-20~+70℃ -40~+85℃ Option |
Storage Temperature Range TSTG |
-55~+125℃ |
Shunt Capacitance C0 |
7pF max. |
Insulator Resistance IR |
500MΩ min. (At 100V) |
Drive Level DL |
100µW (500µW max.) |
Aging Fa |
±3ppm max. (At 25℃, First year) |
Packing Unit |
200pcs/bag |
Table 1:Equivalent Series Resistance(ESR) asd Mode of Vibration(Mode)
Frequency (Mhz) |
Max ESR(Ω) |
Mode |
Frequency (Mhz) |
ESR(Ω) |
Mode |
3.500 to 4.499 |
150 |
Fundamental/AT |
9.000 to 9.999 |
60 |
Fundamental/AT |
4.500 to 5.599 |
120 |
Fundamental/AT |
10.000 to12.999 |
50 |
Fundamental/AT |
6.000 to 6.999 |
100 |
Fundamental/AT |
13.000 to 40.000 |
40 |
Fundamental/AT |
7.000 to 7.999 |
90 |
Fundamental/AT |
40.000 to 66.000 |
80 |
3rd Overtone |
8.000 to 8.999 |
80 |
Fundamental/AT |
|
|
|
