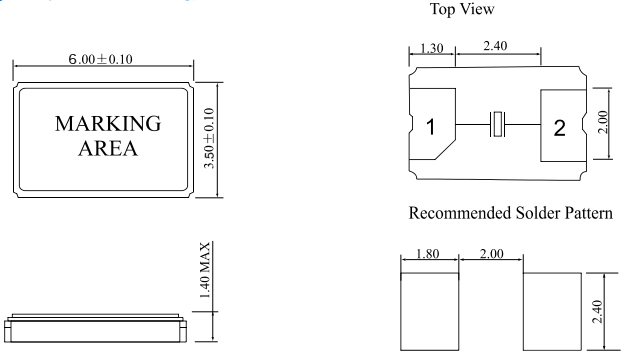

Standard specifications

Frequency Range F0

8 to 9.999MHz

10 to 11.999MHz

12 to 23.999MHz

24 to 54.00MHz

Mode of Vibration

Fundamental

Load Capacitance CL

10pF to Series

Frequency Tolerance △F/F0

±10ppm, ±30ppm,±50ppm(At 25℃)

Equivalent Series Resistance ESR

120 Ωmax.

80Ω max.

50Ω max.

30Ω max.

Temperature Stability             TC

±10ppm,±30ppm,±50ppm(Refer to 25℃)

Operating Temperature Range TOPR

-20~+70℃ -40~+85℃ Option

Storage Temperature Range TSTG

-55~+125℃

Shunt Capacitance C0

7pF max.

Insulator Resistance IR

500MΩ min. (At 100V)

Drive Level DL

100µW (300µW max.)

Aging Fa

±2ppm max. (At 25℃, First year)

Packing Unit

1000pcs/reel
